Performance Characteristics of Haida HD 501

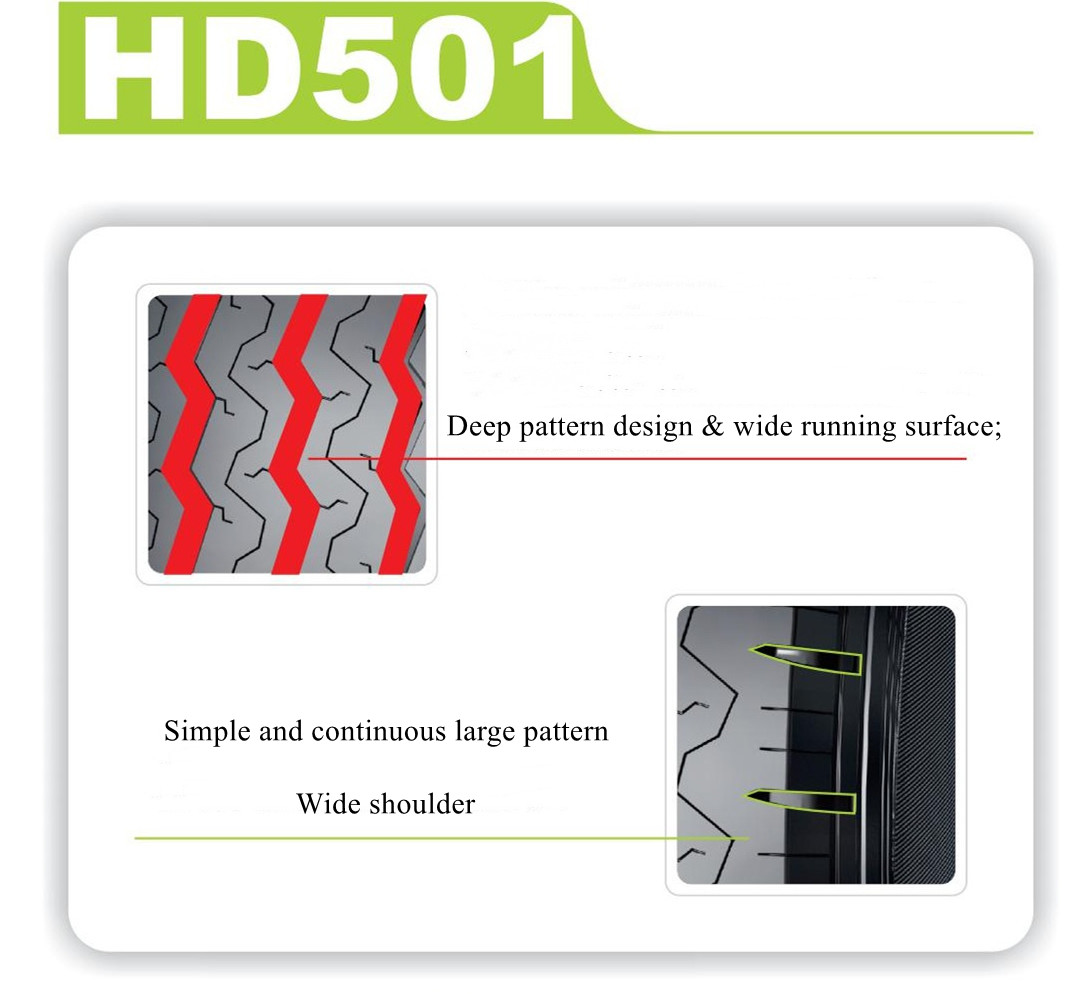

◆Aiming for high-quality deep pattern design and wide running surface, provide excellent durability.
◆Simple and continuous large-block pattern design with smooth longitudinal grooves, excellent control and drainage performance.
◆The wide shoulder pattern design enhances the grounding performance, improves the cornering stability, and ensures driving safety.
◆A new generation of computer simulation contour design technology optimizes ground stress, improves wear resistance, and provides a more comfortable and safe driving experience.
◆The reinforced carcass structure is safe and reliable, and has stronger bearing capacity. It is a caring partner for commercial vehicle and micro trucks.
◆Specially developed high-strength and high-wear-resistance rubber formula, with deepened patterns, to provide a service life that exceeds your expectations.
Main Specifications and Parameters of HD 501
Specification | Load Index/Tier | Speed level | standard rim | Inflatable section width (mm) | Inflated outer diameter (mm) | Load capacity (single/double) (kg) | Inflation pressure (kPa) |
185R14C (LT) | 102/100 8PR | R | 5 1/2 J | 188 | 650 | 850/800 | 450 |
175R14C (LT) | 99/97 8PR | S | 5.0 J | 177 | 634 | 775/730 | 450 |
175/70R14C (LT) | 99/95 8PR | S | 5.0 J | 177 | 602 | 775/690 | 450 |
Haida Tires Suppliers
Petromax Tyre is located in beautiful coastal city-Qingdao, China. We are professional in manufacturing and exporting all kinds of tires, including PCR tires, TBR tires and OTR tires;
We successful obtained certificates below:
ISO9001, TS16949, 3C, ECE, REACH, DOT, INMETRO, GCC, SONCAP and other certificates.
Until now, exported to more than 140 counties and regions, such as Argentina,Brazil,Chile,Bolivia,Colombia,Peru,Venezuela,Chile,Bolivia,Ecuador,Quyana,Paraguay,Suriname,Uruguay, Canada,Australia,New Zealand etc.
